Lighthead

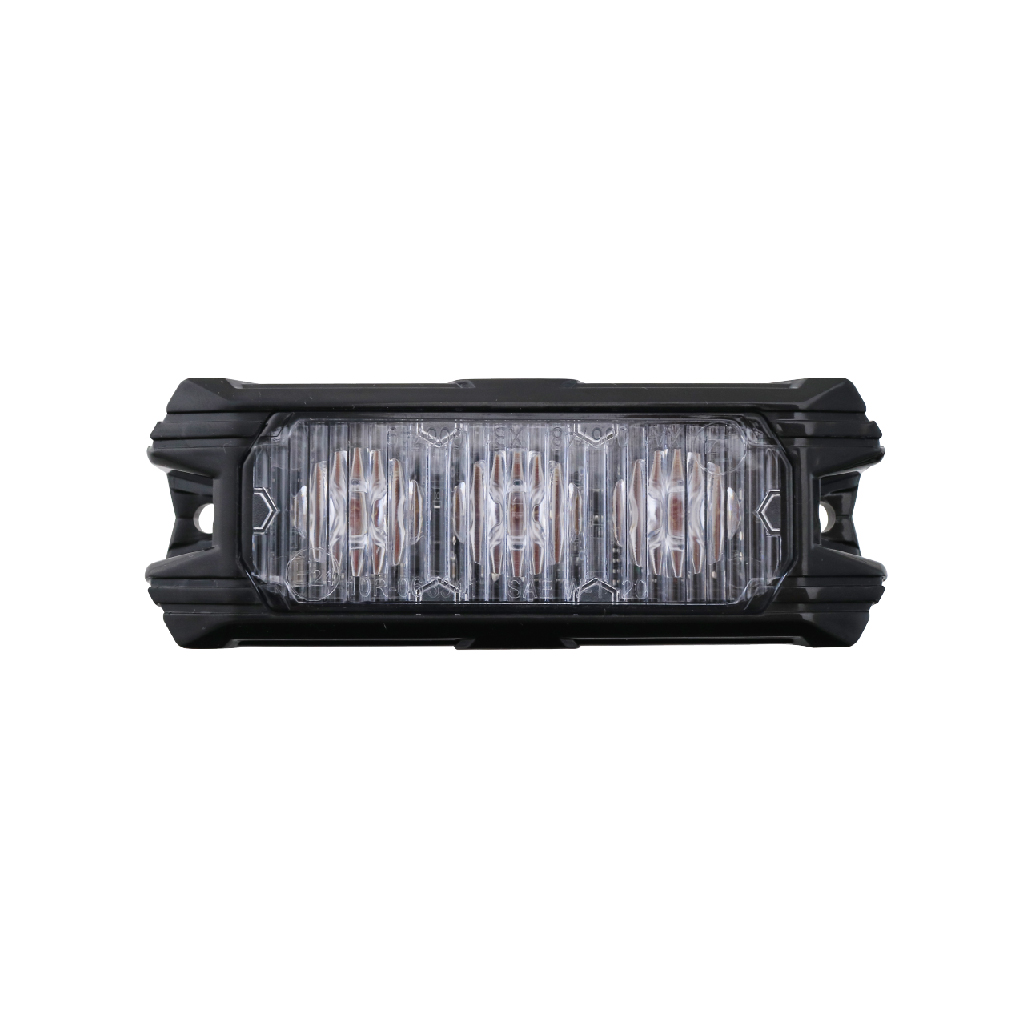

HD3- Heavy Duty 3LED Warning Lighthead

LH07

  • Heavy Duty design with surface mount and hood mount options.
  • Multi-Voltage input 12~24VDC.
  • Built-in 14 selectable flash patterns.
  • Meets SAE J595 Class1, CAL T13, ECE R65 XA1/XB1, ECE R10.
Model HD3 ( Heavy Duty 3 LED )
Product Number LH07
LED High-power LED x 3pcs
Warning Patterns 14 Flash Patterns
Operating Voltage 12~24VDC
Avg. Current 0.32A @12.8VDC / 0.17A @24VDC (varies with flash pattern)
Avg. Power 4.1 Watts (varies with flash pattern)
Max. Current 0.64A @12.8VDC / 0.34A @24VDC
Max. Power 8.2 Watts
Wire-Red +Vcc, 20cm (22AWG)
Wire-Black -GND, 20cm (22AWG)
Wire-Yellow +Vcc for “ID & Flash pattern” selection, “Starter” set up or unlock, 20cm (22AWG)
Wire-Blue Connect all blue wires together among warning lights , 20cm (22AWG)
Fuse Recommended 1A
Multi-Unit Synchronization Up to 16 units

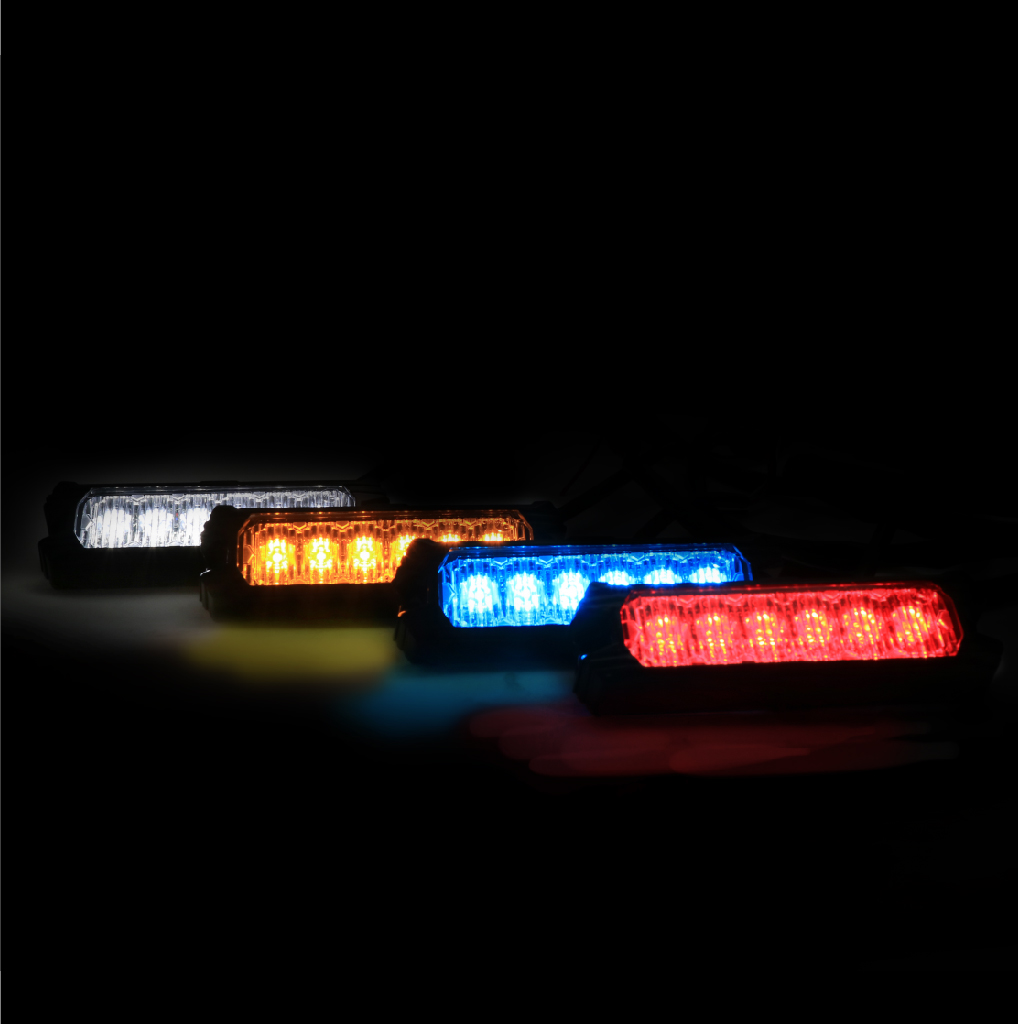

Available Color RED, BLUE, AMBER, WHITE
IP Level IP67
Approval SAE J595 Class 1,CAL T13, ECE R65 XA1/XB1, ECE R10
  • Multi-Voltage input 12~24VDC.
  • Built-in 13 selectable flash patterns.
  • Non-volatile memory recalls last flash pattern used at power up.
  • Synchronization for multiple units that can flash simultaneously or alternately.
  • Reverse polarity protection.
  • Weatherproof and vibration resistant design.
  • Warning lamp replacement
  • 4x4 vehicle, Jeeps, Off-road applications
  • Emergency Service Vehicle: Fire trucks, ambulance, Police cars
  • Trucks or Buses
  • Motorcycles
  • Any special warning purpose application
