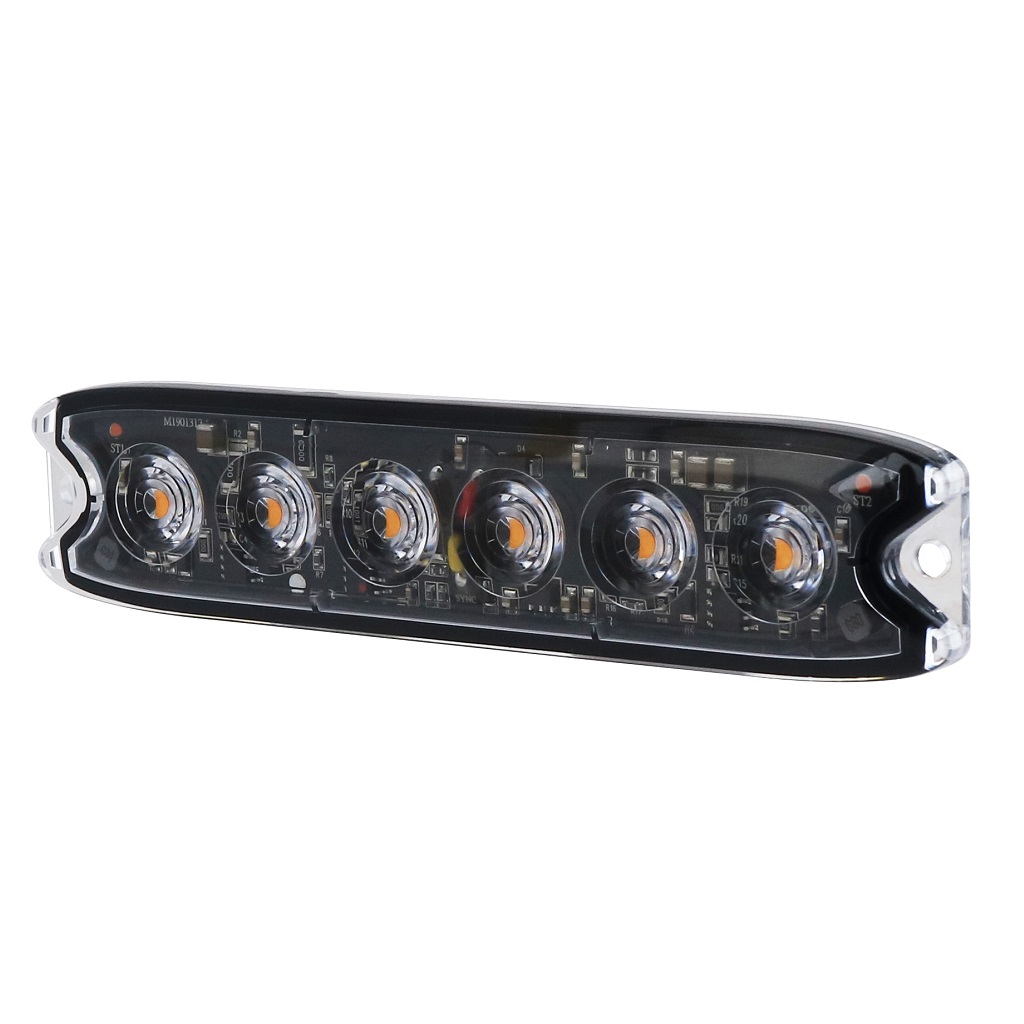

| Model |
TP6 ( Thinpad 6 LED ) |
| Product Number |
LH02 |
| LED |
High-power LED x 6pcs |
| Warning Patterns |
19 Flash Patterns |
| Operating Voltage |
12~24VDC |
| Avg. Current |
0.48A @12.8VDC / 0.26A @24VDC (varies with flash pattern) |
| Avg. Power |
6.2 Watts (varies with flash pattern) |
| Max. Current |
0.96A @12.8VDC / 0.51A @24VDC |
| Max. Power |
12.3 Watts |

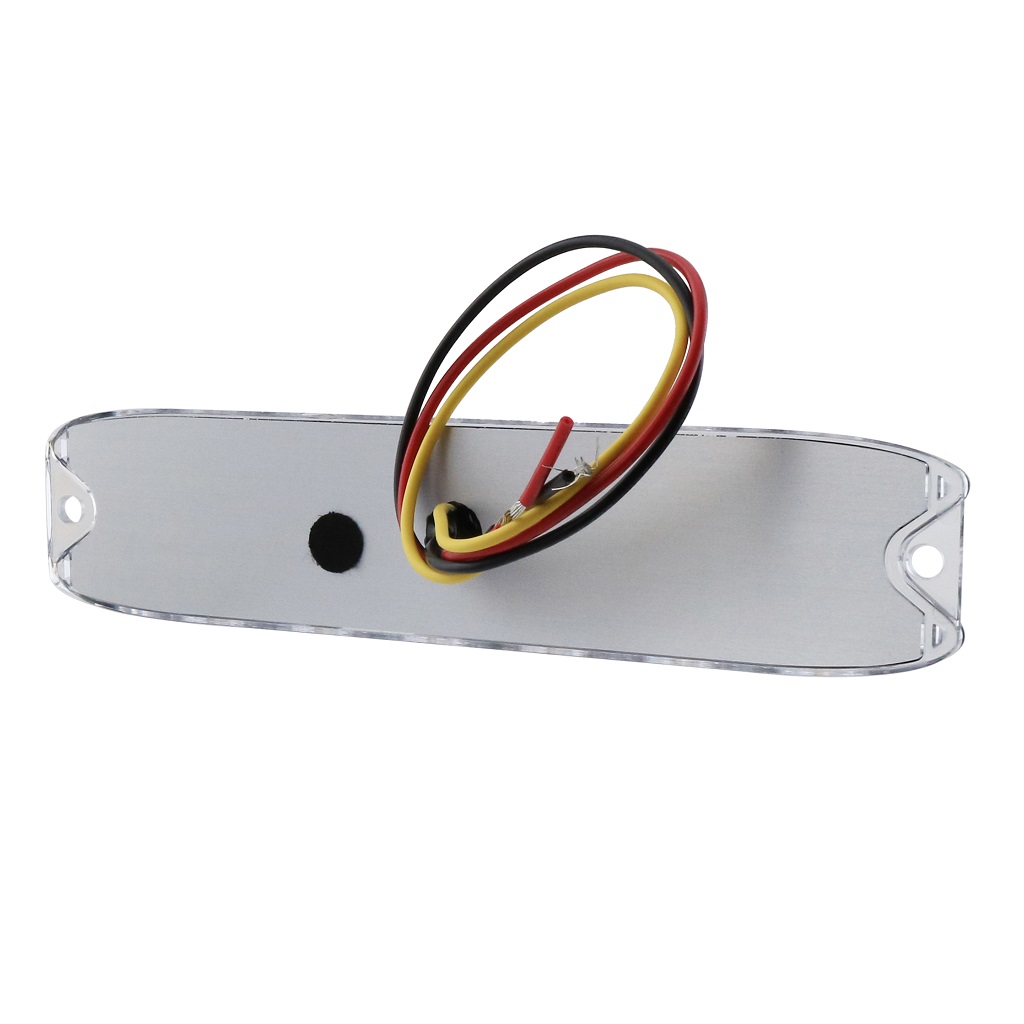

| Wire-Red |
+Vcc, 20cm (22AWG) |
| Wire-Black |
-GND, 20cm (22AWG) |
| Wire-Yellow |
+Vcc for “ID & Flash pattern” selection, “Starter” set up or unlock, 20cm (22AWG) |
| Wire-Blue |
Connect all blue wires together among warning lights, 20cm (22AWG) |
| Fuse Recommended |
2A |
| Multi-Unit Synchronization |
Up to 16 units |
| Available Color |
RED, BLUE, AMBER, WHITE and Split Color |
| IP Level |
IP67 |
| Approval |
SAE J595 Class 1,CAL T13, ECE R65 XA1/XB1, ECE R10 |
