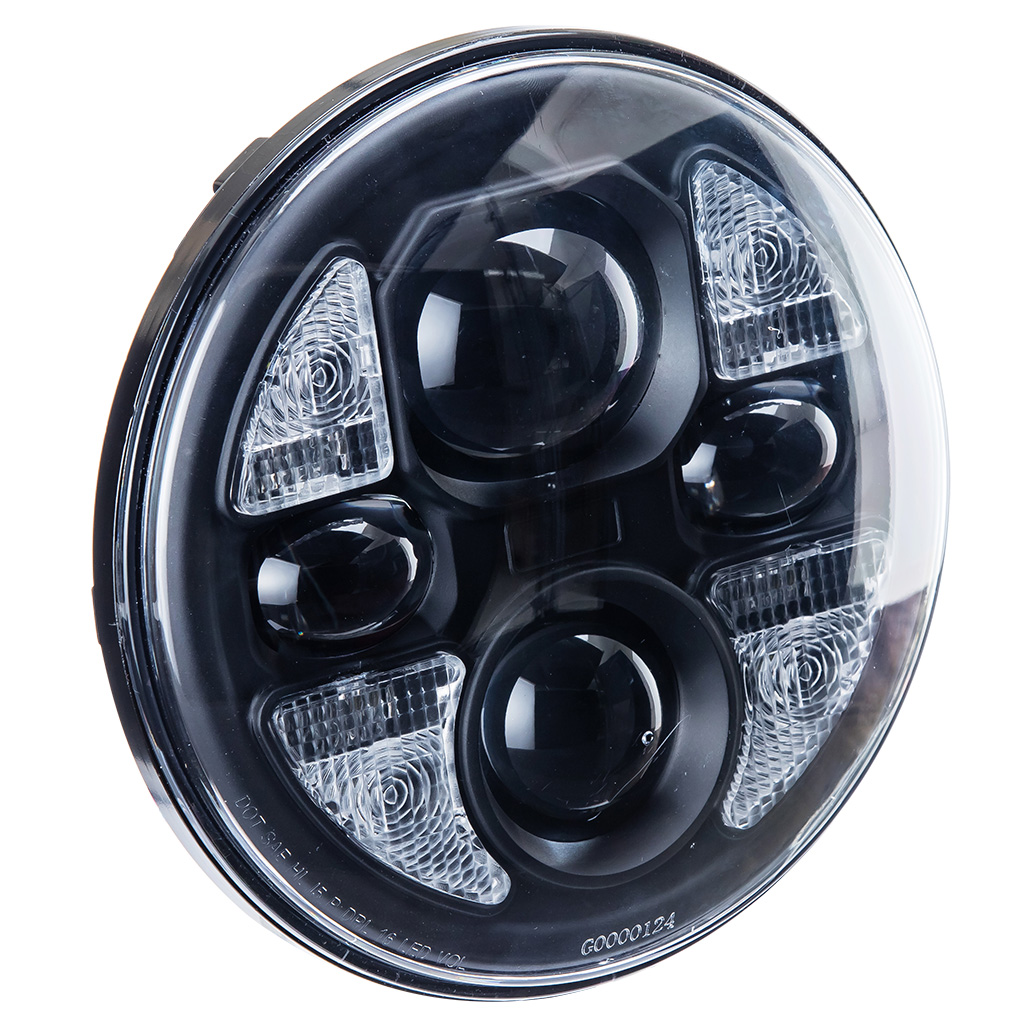

7 Inches Round Multi-Functional Headlight
HL-UV035
- 7 inches round multi-functional headlight, with integrated High Beam, Low Beam, DRL, Position Light and Direction Indicator, 5 functions in 1 compact design.
- Aluminum base and hard coated lens for excellent heat dissipation and UV resistance.
- High impact material & waterproof design.
- Comply with ECE & SAE regulation.
| Product Number | HL-UV035 |
|---|---|
| Input Voltage | 10~16VDC |
| Current-High Beam | 3.29A@13.5VDC |
| Current-Low Beam | 2.24A@13.5VDC |
| Current- DRL (Full) | 0.16A@13.5VDC |
| Current- DRL (Reduced) | 0.04A@13.5VDC |
| Current-Direction Indicator | 0.29A@13.5VDC |
| Power – High Beam | 45W |
| Power – Low Beam | 31W |
| Power – DRL (Full) | 3W |
| Power – DRL (Reduced) | 1W |
| Power - Direction Indicator | 4W |
| Color Temp. | 5700K White |
| Operating Temp. | -30°C ~ +70°C |
| Lens Material | PC |
| Base Material | Aluminum |
| Approval | ECE, SAE |
| Product Number | Product Description |
| HL-UV035 | For Left Hand Drive Vehicle |
| HR-UV035 | For Right Hand Drive Vehicle |
| HM-UV035 | For Motorcycle |
- Durable and less energy consuming with a long service life.
- High Beam: Wide and long beam with center-weighted light distribution, enhance driver’s sight and detect obstacles easier.
- Low Beam: Medium length and width with a sharp and clear asymmetric cut-off line.
- Aluminum heat sink for excellent heat dissipation and hard-coated lens for UV resistance.
- Comply with ECE & SAE regulation.
- Headlamp replacement
- 4x4 vehicle, Jeeps, Off-road applications
- Customized car light modification
- Trucks or Buses
- Motorcycles
- Any special purpose of application
